Wrong monitor refresh rate.

Good day!
I have installed Q4OS 4.7 Gemini Trinity x64.

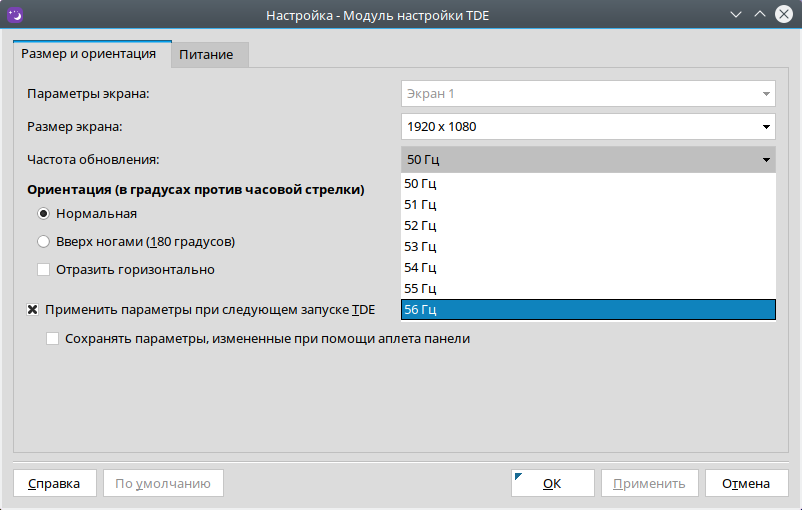

When I open settings:/Peripherals/ then Display, I always have wrong monitor refresh rates (attachment). No 60Hz, no 75Hz... Only 50, 51, 52, 53.... As result, I can not set up proper monitor refresh rate.
My system:

System:    Kernel: 5.10.0-10-amd64 x86_64 bits: 64 Desktop: Trinity R14.0.11 Distro: Q4OS 4.7.1-n1
Machine:   Type: Desktop Mobo: Gigabyte model: P43T-ES3G v: x.x serial: <filter> BIOS: Award v: F7 date: 08/20/2010
CPU:       Info: Quad Core model: Intel Core2 Quad Q9450 bits: 64 type: MCP L2 cache: 6 MiB
           Speed: 2000 MHz min/max: 2000/2667 MHz Core speeds (MHz): 1: 2000 2: 2069 3: 2000 4: 2069
Graphics:  Device-1: NVIDIA GK107 [GeForce GT 740] driver: nvidia v: 460.91.03
           Display: x11 server: X.Org 1.20.11 driver: loaded: nvidia unloaded: fbdev,modesetting,nouveau,vesa
           resolution: 1920x1080
           OpenGL: renderer: GeForce GT 740/PCIe/SSE2 v: 4.6.0 NVIDIA 460.91.03
Audio:     Device-1: Intel 82801JI HD Audio driver: snd_hda_intel
           Device-2: NVIDIA GK107 HDMI Audio driver: snd_hda_intel
           Sound Server: ALSA v: k5.10.0-10-amd64
Network:   Device-1: Realtek RTL8111/8168/8411 PCI Express Gigabit Ethernet driver: r8169
           IF: enp4s0 state: up speed: 1000 Mbps duplex: full mac: <filter>
Drives:    Local Storage: total: 232.89 GiB used: 16.65 GiB (7.2%)
           ID-1: /dev/sda vendor: Crucial model: CT250MX500SSD1 size: 232.89 GiB
Partition: ID-1: / size: 219.86 GiB used: 16.65 GiB (7.6%) fs: ext4 dev: /dev/sda1
Swap:      ID-1: swap-1 type: partition size: 8.44 GiB used: 0 KiB (0.0%) dev: /dev/sda2
Sensors:   System Temperatures: cpu: 34.0 C mobo: 22.0 C gpu: nvidia temp: 35 C
           Fan Speeds (RPM): cpu: 634 fan-2: 710 fan-3: 1019 gpu: nvidia fan: 33%
Info:      Processes: 181 Uptime: 18m Memory: 3.84 GiB used: 1.07 GiB (27.8%) Shell: Bash inxi: 3.3.01

I have ASUS VA24DQ monitor which supports 60 and 75Hz refresh rates and connected using HDMI interface.

Last edited by Rademes (2022-01-09 16:33)

---

Attachments:
WrongMonitorRefreshRate.png, Size: 36.18 KiB, Downloads: 263

---

Before asking for help please read this topic: https://www.q4os.org/forum/viewtopic.php?id=3502   If you have problems with WiFi network, try to install the Network Manager using Q4OS Software Centre.

q4osteam

Q4OS Team

Registered: 2015-12-06

Posts: 4,230

Website

Re: Wrong monitor refresh rate.

Yes, we can confirm this issue, it's not Q4OS specific, but Trinity bug.

Tolkem

Member

Registered: 2019-10-06

Posts: 487

Re: Wrong monitor refresh rate.

What's the output of

xrandr

Launch konsole and run that. If the output shows the desired rate, you can set it with something like

xrandr --output HDMI-1 --mode 1920x1080 --rate 60

change the values to reflect your system's.

Rademes

Member

From: Latvia

Registered: 2015-12-13

Posts: 636

Re: Wrong monitor refresh rate.

Yes, we can confirm this issue, it's not Q4OS specific, but Trinity bug.

Bug was reported here: https://mirror.git.trinitydesktop.org/g … /issues/75

Last edited by Rademes (2022-01-20 20:23)

---

Before asking for help please read this topic: https://www.q4os.org/forum/viewtopic.php?id=3502   If you have problems with WiFi network, try to install the Network Manager using Q4OS Software Centre.

micheleCQ4OS

Member

Registered: 2023-12-30

Posts: 4

Re: Wrong monitor refresh rate.

@q4osteam: could you test the following fix and let us know if it works (possibly report on the link below rather than here)?
https://mirror.git.trinitydesktop.org/g … /pulls/250
You can read more info at ht tps://mirror.git.trinitydesktop.org/gitea/TDE/tde/issues/75 too.

Last edited by micheleCQ4OS (2024-01-03 05:40)

q4osteam

Q4OS Team

Registered: 2015-12-06

Posts: 4,230

Website

Re: Wrong monitor refresh rate.

@Q4OS Team: could you test the following fix and let us know if it works

Do Trinity PSB builds include these patches ? So do we need to install Debian with the latest Trinity PSB and test it on a hardware affected by this bug ?

micheleCQ4OS

Member

Registered: 2023-12-30

Posts: 4

Re: Wrong monitor refresh rate.

Do Trinity PSB builds include these patches ? So do we need to install Debian with the latest Trinity PSB and test it on a hardware affected by this bug ?

PSB does not include the patch yet, but you can download the patch from that link above and apply before building it.
So you could install PSB on Debian and then rebuild tdelibs with the specified patch

Last edited by micheleCQ4OS (2024-01-03 05:41)

q4osteam

Q4OS Team

Registered: 2015-12-06

Posts: 4,230

Website

Re: Wrong monitor refresh rate.

Well, such testing will take a time. Since we're pretty busy now, we'll do it when we get a chance.

micheleCQ4OS

Member

Registered: 2023-12-30

Posts: 4

Re: Wrong monitor refresh rate.

Well, such testing will take a time. Since we're pretty busy now, we'll do it when we get a chance.

Sure, no problem.
If we create a specially built PSB package with the patch, would that help making the test faster?

micheleCQ4OS

Member

Registered: 2023-12-30

Posts: 4

Re: Wrong monitor refresh rate.

Well, such testing will take a time. Since we're pretty busy now, we'll do it when we get a chance.

@q4osteam: any update on eventual testing? If the fix is good, we would like to include this into the upcoming R14.1.2 TDE release.
Thanks.

Last edited by micheleCQ4OS (2024-03-21 13:00)

q4osteam

Q4OS Team

Registered: 2015-12-06

Posts: 4,230

Website

Re: Wrong monitor refresh rate.

We haven't tested 14.1.2 on amd64/i386 so far.

Last edited by q4osteam (2024-03-21 15:24)
